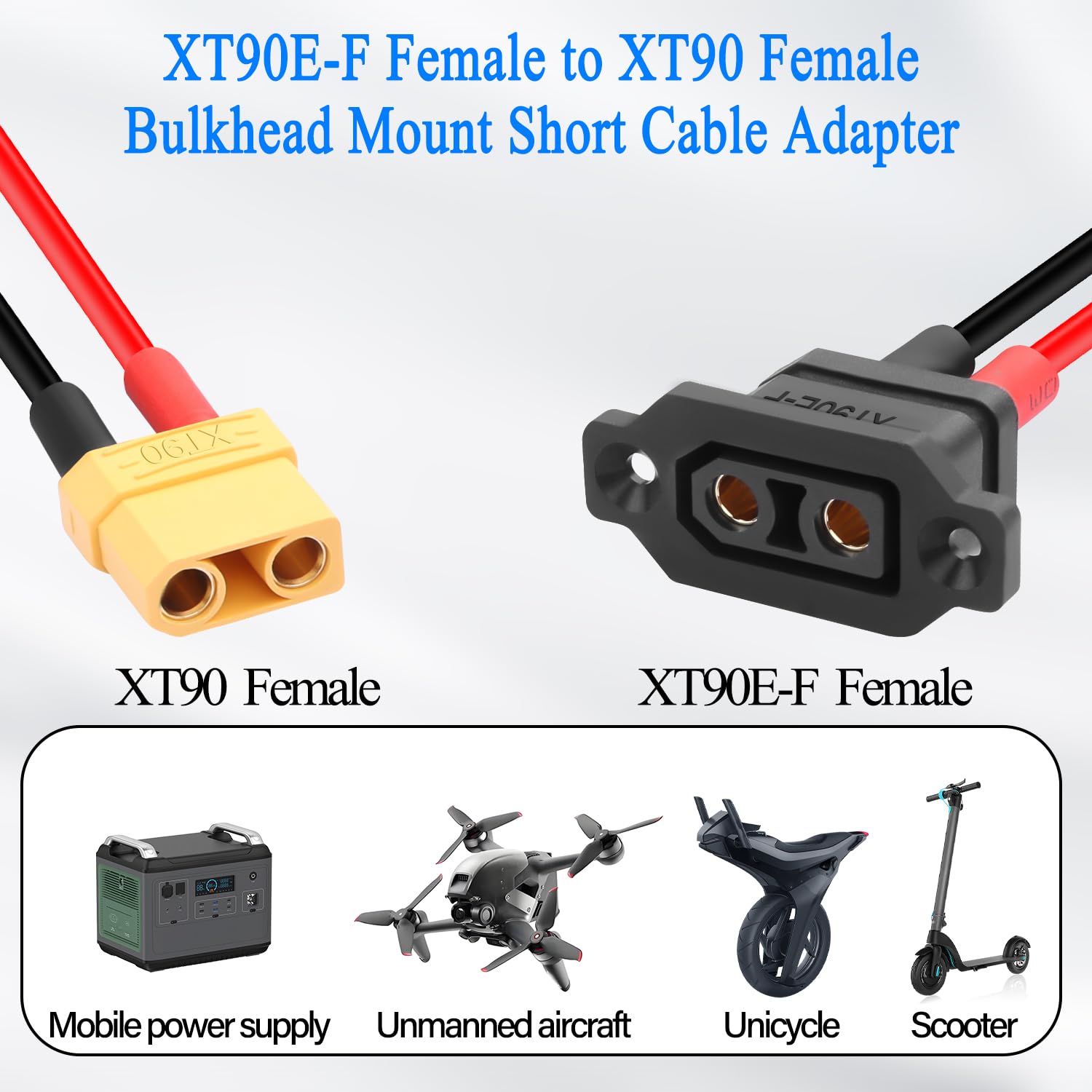

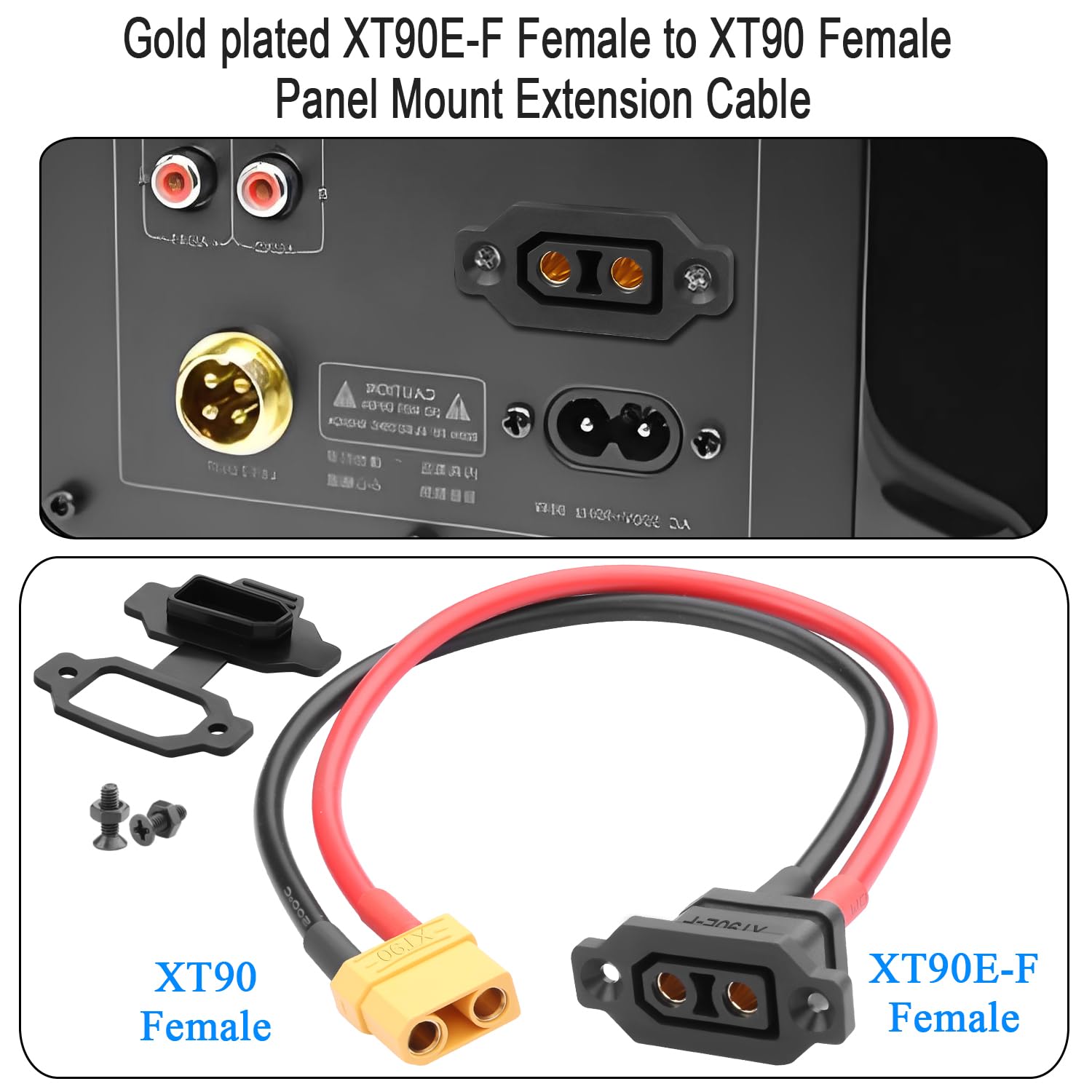

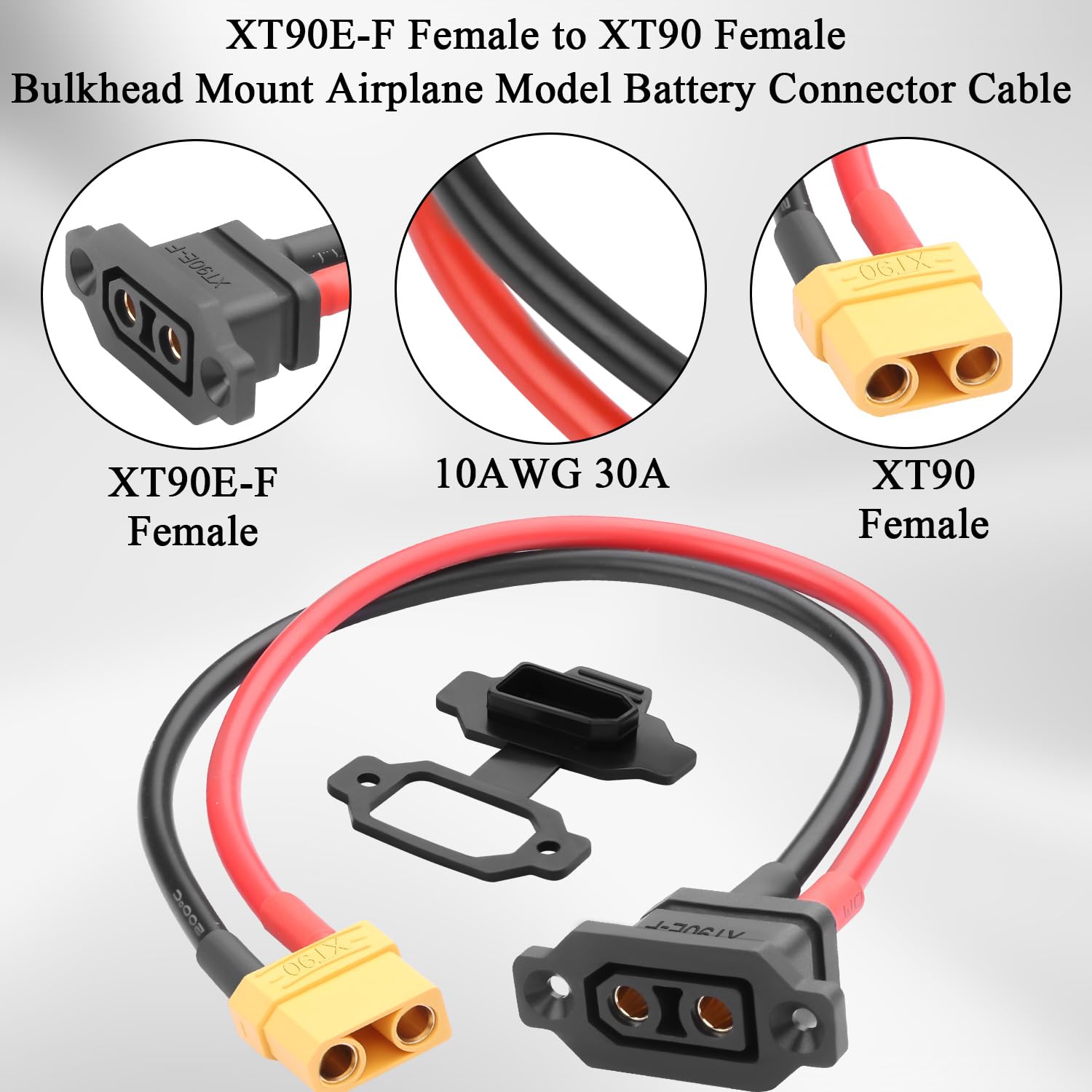

【XT90E-F Female to XT90 Female】Gold plated XT90E-F female to XT90 female Bulkhead Mount Airplane Model Battery connector cable. XT90E-F is a XT90 female connector that can be fixed, XT90 male port of the epitaxial device, converted to XT90 female port input and output. 【Bulkhead Mount】XT90E-F female to XT90 female Fixed Mount Li-Po batteries Cable adapter. Equipped with M3 screws and nuts, it is convenient to fix the XT90E-F female bulkhead to the equipment panel, rack and housing. 【10AWG 30A】XT90E-F Female to XT90 Female Panel Mount Extension cable. The gold-plated XT90 connector connects via a 10AWG red and black solid copper wire to easily withstand a constant 30A peak of 60A. 【Gold plated XT90】XT90E-F Female to XT90 Female Airplane Lithium Battery Bulkhead fixed mount cable adapter. XT90 connector adopts pure copper gold-plated ferrule, more stable transmission.PA66 insulation material, safe and reliable. 【Application】10AWG XT90E-F female to XT90 female Fixed Mount Short cable. Compatible with XT90 high current plug, used for outdoor mobile power supply, portable energy storage power supply, quadcopter, RC aeromodelling, FPV drone, electric vehicle.
10AWG 30A XT90E-F Female to XT90 Female Airplane Model Battery Connector Fixed mount cable. XT90E-F is a XT90 female connector that can be fixed to convert the XT90 male port of an external device to XT90 female input/output. Equipped with M3 screws and nuts, it is convenient to fix the XT90E-F female bulkhead on the equipment panel, rack and shell.XT90 connector adopts pure copper gold-plated insert, which is more stable in transmission.PA66 insulating material, safe and reliable. Compatible with XT90 high current plug, mostly used for outdoor mobile power, portable energy storage power, quadcopter, RC model, FPV drone, electric car.
Port 1: XT90E-F female
Port 2: XT90 Female
Wire: 10AWG
Rated current: 30 A
Operating Temperature: -20°C to +120°C
Conductor: Copper gold plated
Insulator: PA

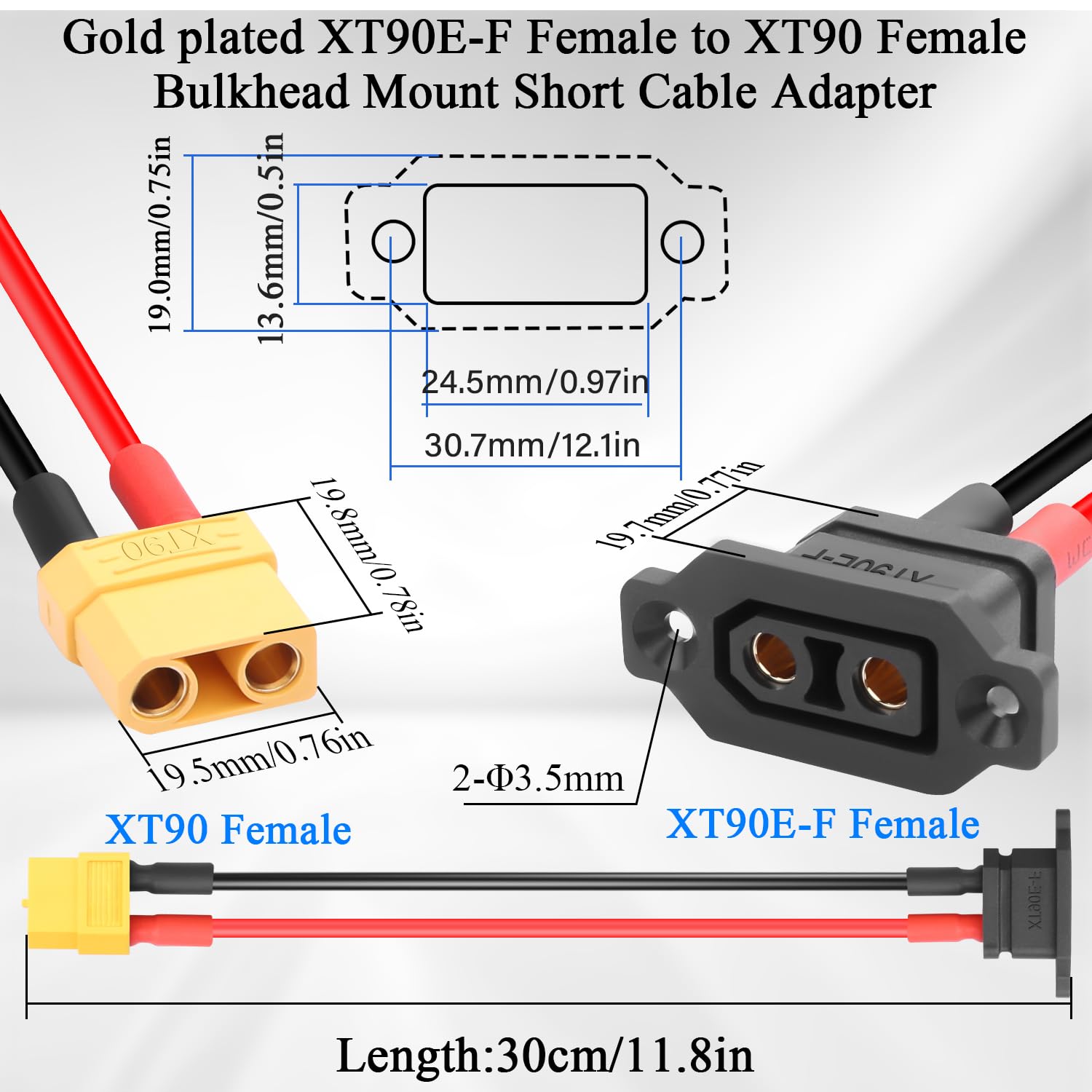

Mounting Thread: M3
Mounting hole pitch: 32.4mm/1.27in
Wire length: 30cm/11.8in

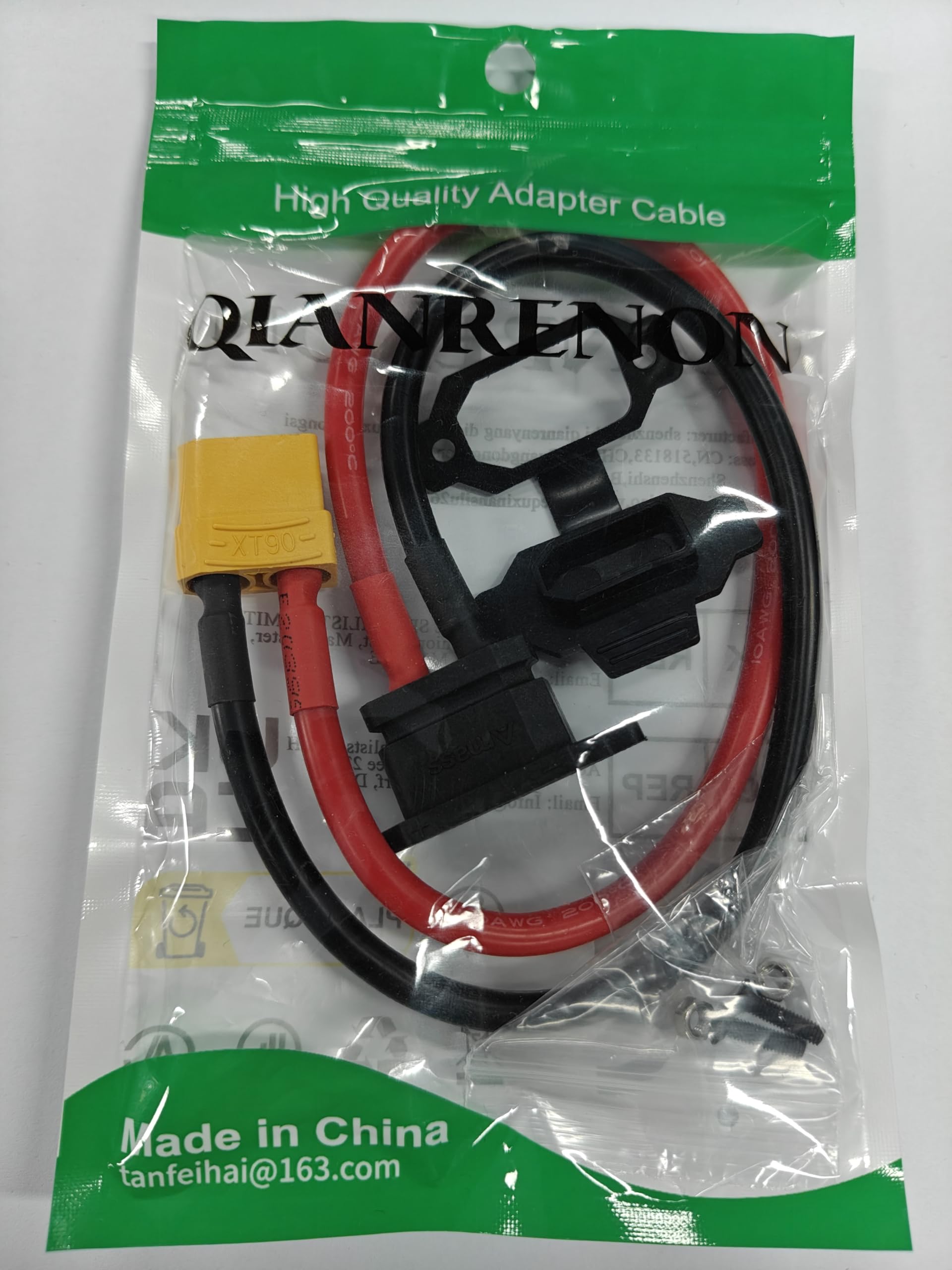

Package: 1*XT90E-F female to XT90 female Bulkhead mount Short cable adapter. 1*dust cover. 2*M3 screws/nut
